Beschreibung

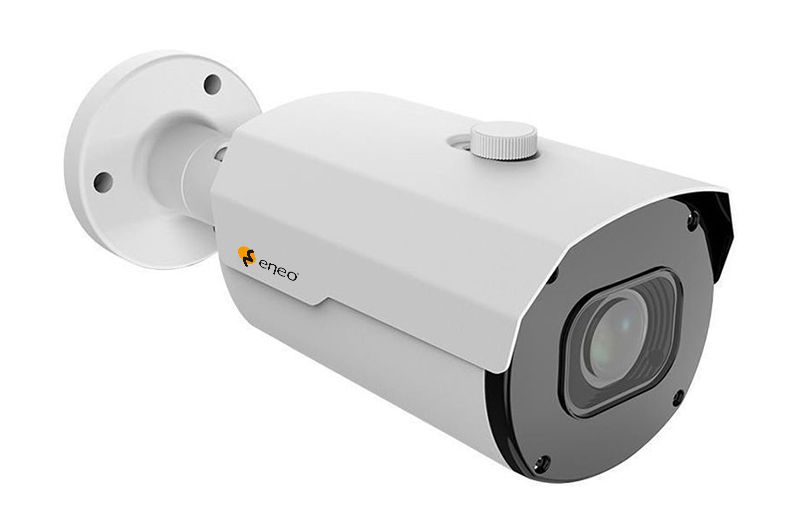

Sensor: 1/2.8" Objektiv: Varifokal (motorisiert), F1.2/2.7 - 13.5 mm (110.6 - 32.6°), 0.05 Lux, 5MP, Multisignal: HD-TVI, AHD, CVI, CVBS, IR-Beleuchtung 35 m, 12 VDC, aussen IP67
Spezifikationen
Gehäuse und Montage | |
---|---|
Abmessungen (HxBxT) | 83.88x87.4x242 mm |
Kameraform | Bullet |
Gehäusetyp | aussen |
Werkstoff | Aluminium |
Farbe | RAL9003 / Pantone P 179-1 |
Montageart /-ort | Wandmontage / Deckenmontage |
Schutzart | IP67 |
Einsatztemperatur | -30°C bis +55°C |
Funktionen / Anzeigen | |
AI Videoanalyse | Nein |
Video-Eigenschaften | |
Bildübertragungsrate | 20fps @ 2592x1944 p, 25/30fps @ 2560x1440 p, 25/30fps @ 1920x1080 p |
Bildsensor-Chipgrösse (zoll) | 1/2.8" |
Signalformat | Composite (FBAS) / HD-TVI @ 5MP / AHD @ 5MP / HD-TVI @ 4MP / AHD @ 4MP / CVI @ 4MP / HD-TVI @ 2MP / AHD @ 2MP / CVI @ 2MP |
Lichtempfindlichkeit | 0.05 Lux / bei F1.2 |
Beleuchtung | Infrarot |
Beleuchtungsreichweite | 35 m |
Objektiv Typ | Varifokal (motorisiert) |
Auflösung Pixel | 2592x1944 / 2560x1440 / 1920x1080 / 960x540 |
Zoom Faktor | 4x |
Zoom digital | nein |
Brennweite | 2.7 - 13.5 mm |
Blendenbereich | F1.8 bis F3.3 |
Bildwinkel horizontal | 110.6 - 32.6° |
Steuer-Schnittstellen | Coaxitron (HD Protokoll) |
Installation / Versorgung | |
Stromversorgung | 12 VDC |
Klassifikation | |
Kategorie | TVI-Kameras HD |
Marke | ENEO |
